This PWM solar controller features automatic identification of the battery system voltage level and automatic identification of solar panel input, PWM intelligent charging mode and charge and discharge protection . In addition, the 12V / 24V 40A PWM solar controller charges specifically based on our battery technology , as well as reverse battery discharge protection. Another of the most attractive features of the 12V / 24V 40A PWM solar controller has an LCD screen for better load tracking and protection against overvoltage.

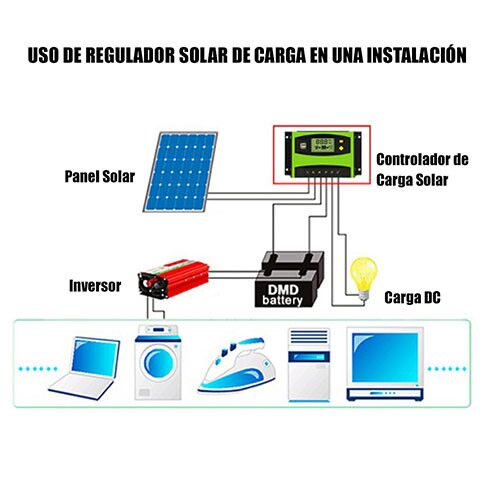

Installation Solar regulator 12V / 24V 40A PWM
The installation of this regulator model is very simple, however in Wccsolar we recommend that the 12V / 24V 40A PWM solar controller be installed by a photovoltaic professional , or the installation instructions are strictly followed to avoid breakage and breakdown due to a fault. improper installation
Maximum grace 50V voltage input This regulator allows 24V panels (250w to 330w) to be automatically regulated to 12v for 12 volt installations.
Buy Solar regulator 12V / 24V 40A PWM
Buy Solar Regulator 12V / 24V 40A PWM is fast, safe and comfortable thanks to Wccsolar, in addition the Solar Regulator 12V / 24V 40A PWM has an official Wccsolar guarantee.
Contact us to receive more information.

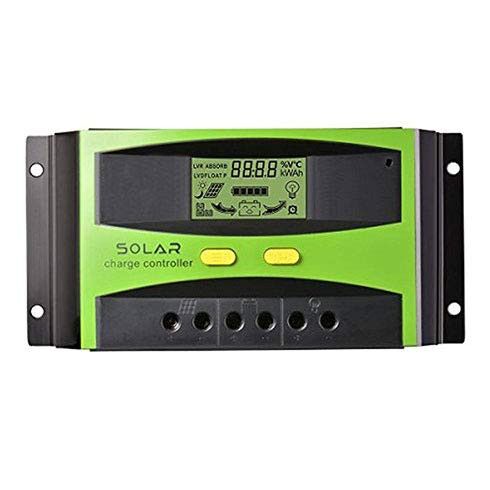

Solar controller 40A PWM 12v / 24v
Data sheet
PWM-40124
12V / 24V Automatic switch, with digital display.
Maximum load / discharge current: 40A
Maximum Solar Panel Input 50V
Full cut of chagre: 16.5V / 32V by default
Low voltage cut: 11V / 22V by default
Low voltage restoration: 12.6V / 25.2V default
Static current: ≤45mA voltage drop: <240mv
Max wire area: 6mm² temperature compensation: -3mv / ° C / cell
Controller size: 192 * 106 * 40mm
Box size: 215 * 120 * 52mm
NW: 400 g
GW: 500 g
Functions:
Protection: over load, over discharge, over load, low voltage, short circuit, reverse connection.
