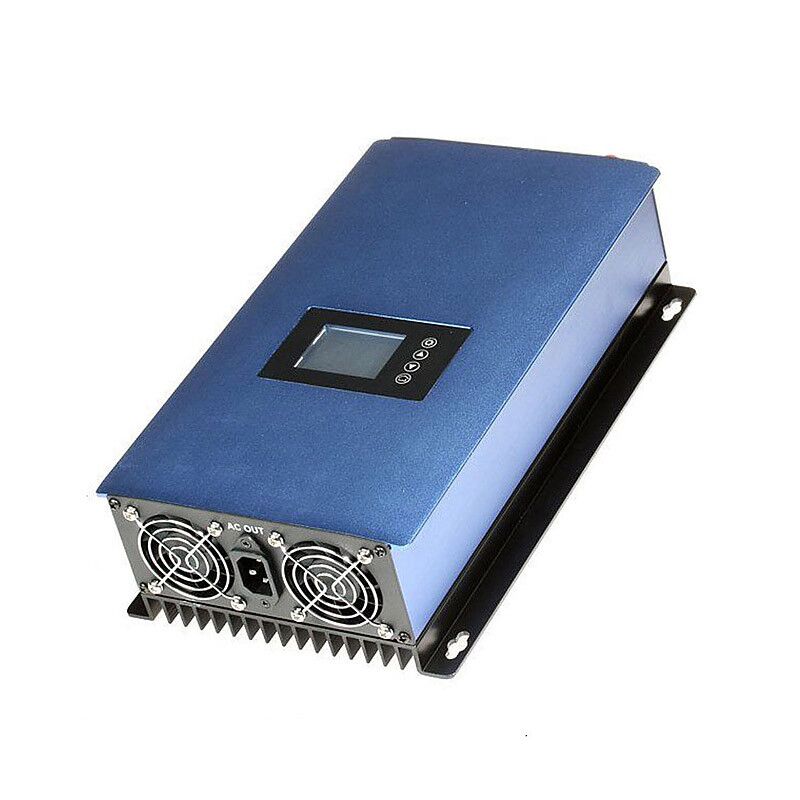

The GridFree Inverter with Limiter with an output of 1000W works with the input voltage range of 45-90 Vdc. The limiter can reduce the output power according to the actual consumption of the house. MPPT function provides maximum efficiency of solar panels .
 The GridFree inverter with limiter is a revolutionary solution for domestic solar installations that works in a similar way to other GridFree microinverters, but is capable of reducing its own production according to the current consumption of the house and thus completely avoiding overflows to the public grid .

 These inverters are designed for internal use and you can monitor the current values on the color screen where the following values are displayed:
The current output power of solar panels / battery
The energy supplied from the public grid
Voltage at DC input
Temperature
Network voltage
Date and Time
Daily production graph
Inverter setting

 Contact us to receive more information.

 There are also specific settings of the proper inverter in the case when the battery is in the DC input ie. Working input voltage (lower limit) and the maximum output power of the inverter.
 GridFree inverter operates in the 45-90 Vdc voltage input range and continuous power is 1000w. The inverter output is at 230VAC nominal voltage and the output is connected between the main circuit breaker to the electricity meter box and house circuit breakers.
 Inverter transferring energy from solar panels or batteries to the home electrical grid. Your appliances will have the energy from their own production. The idle power is taken from the public grid in case the output power of its own production will not be sufficient for all the appliances. You can protect your system from unwanted overflows to the utility grid when it will produce more power than appliances require by installing the supplied current sensor. This sensor connects directly to the inverter and make sure the sensor is connected to the narrow side in the case of the sensor.
The Grid Connection Inverter is an inverter that allows us to interconnect with the electricity grid without the need for batteries, which is why this type of installation is economical and very profitable in the long term, given its low cost from a simple installation and with few electronic devices that make the system more expensive.
 For a grid connection installation to work correctly, we will need a group of solar panels, previously calculated to suit the needs of each case, and a grid connection inverter, which will allow us to transform energy from the solar panels in order to make use of it
 The inverters have an injection system to the zero grid, this means that in the event that the solar installation is producing more energy than the house or industrial building is consuming, the zero injection system will allow us to lower the inverter power only if there is an energy surplus.
 In summary, the functionality of zero injection systems is to lower the power of the inverter when the energy produced is higher than the energy consumed, thus preventing it from being poured into the general electrical grid.
 Handbook

 Installation Inverter 1000w Injection to zero discharge network
 The installation of this model of 1000w Inverter zero discharge grid injection is simple, however in Wccsolar we recommend that it be installed by a photovoltaic professional , or the installation instructions are strictly followed to avoid bad connections and breakdowns due to a incorrect installation.

 Buy Inverter 1000w Injection to zero discharge network

 Buying the 1000w Inverter Injection to zero discharge network is fast, safe and comfortable thanks to Wccsolar, in addition to the Inverter 1000w Injection to zero discharge network   It has an official guarantee from Wccsolar.

 Contact us to receive more information.
