3000W 24V inverter charger, with 80A MPPT VHM PLUS special for photovoltaic solar kits, it is a pure sine wave inverter with a 30A battery charger and a 80A MPPT solar regulator integrated in a single unit. It is one of the best solutions on the market today, as it is capable of managing the charging of the solar panels , the charging of the batteries , and also has a battery charger, which allows charging them from a generator set to gasoline or the electricity grid in case the solar panels were not able to supply the necessary energy. The function of solar hybrid inverters is not to pass current through the batteries throughout the day, but rather to use the energy they provide. The battery is charged during the day with the excess production that we do not use, which is the power figure that we see on the screen.
3000W 24V, with 80A MPPT VHM PLUS Grace Parallel Function Inverters Chargers allow the most demanding installations to have 3 inverters connected in parallel, increase up to 9,000W continuous and 18,000w peak arrache (valid for single phase 220v and three phase 380v)
Thanks Function for Equalization (parameter 36) increases 20% more of the useful life of batteries.
They are pure wave inverters and some of the models are also parallel, supporting higher powers than other inverters.
The battery is charged during the day with the excess production that we do not use, which is the power figure that we see on the screen.
The inverter is capable of generating a pure sine wave, with the same characteristics as that created by the conventional electrical grid.
All of this can be viewed through the LCD display. that is included in the Must Solar Inverter housing. In addition, the equipment of the manufacturer Must Solar allows the programming of the operating parameters of the installation, as well as the connection via Wifi to be able to monitor it from any computer through a web page.
Operation scheme:
In the case of being at night, a cloudy day or having a higher energy demand than what the panels can provide, the necessary energy is provided by the battery bank. If, for example, at 12:00 noon we are producing 1,500W with solar panels, and the house consumes 500W at that time, we will be charging the batteries with the remaining 1,000W, in order to have supply during the night.Installation Inverter 3KW VHM PLUS hybrid

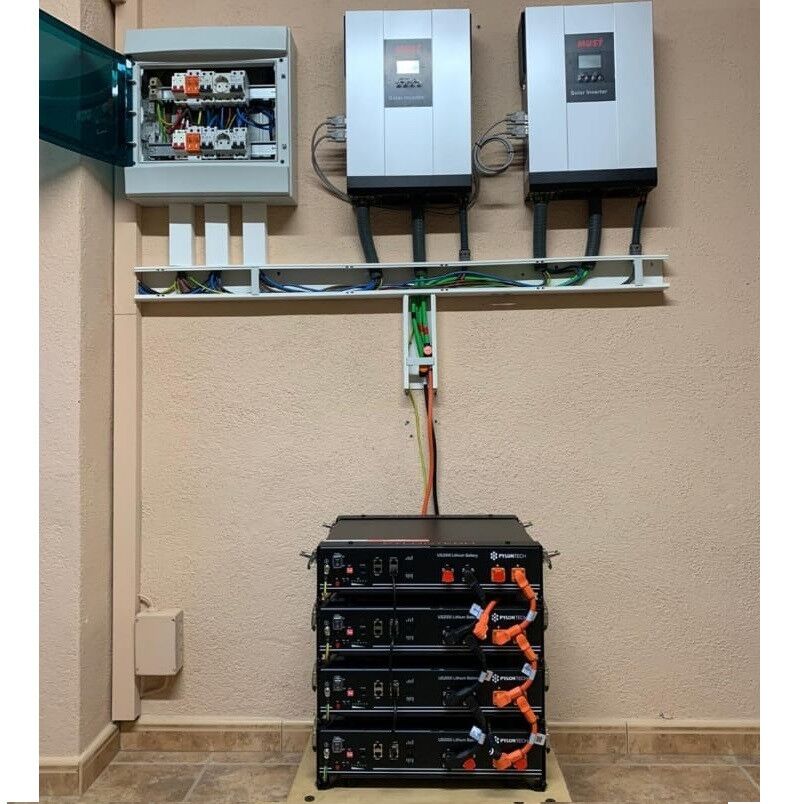

In order to provide maximum protection for both the inverter and the system in general, we advise you to put a Protection and Pre-installation Kit . The installation of this model of inverter 3000W 24v hybrid is simple with your pre-installation kit, however at Wccsolar we recommend that the 3KW 24v hybrid inverter be installed by a photovoltaic professional , or the installation instructions are strictly followed to avoid bad connections and breakdowns due to improper installation.
Buy Inverter 3KW VHM PLUS 24v hybrid
Buying the 3KW (3000W) 24v hybrid Inverter is fast, safe and convenient thanks to Wccsolar, in addition to the 3KW 24v hybrid Inverter It has an official guarantee from Wccsolar.
Contact us to receive more information.
2 years warranty

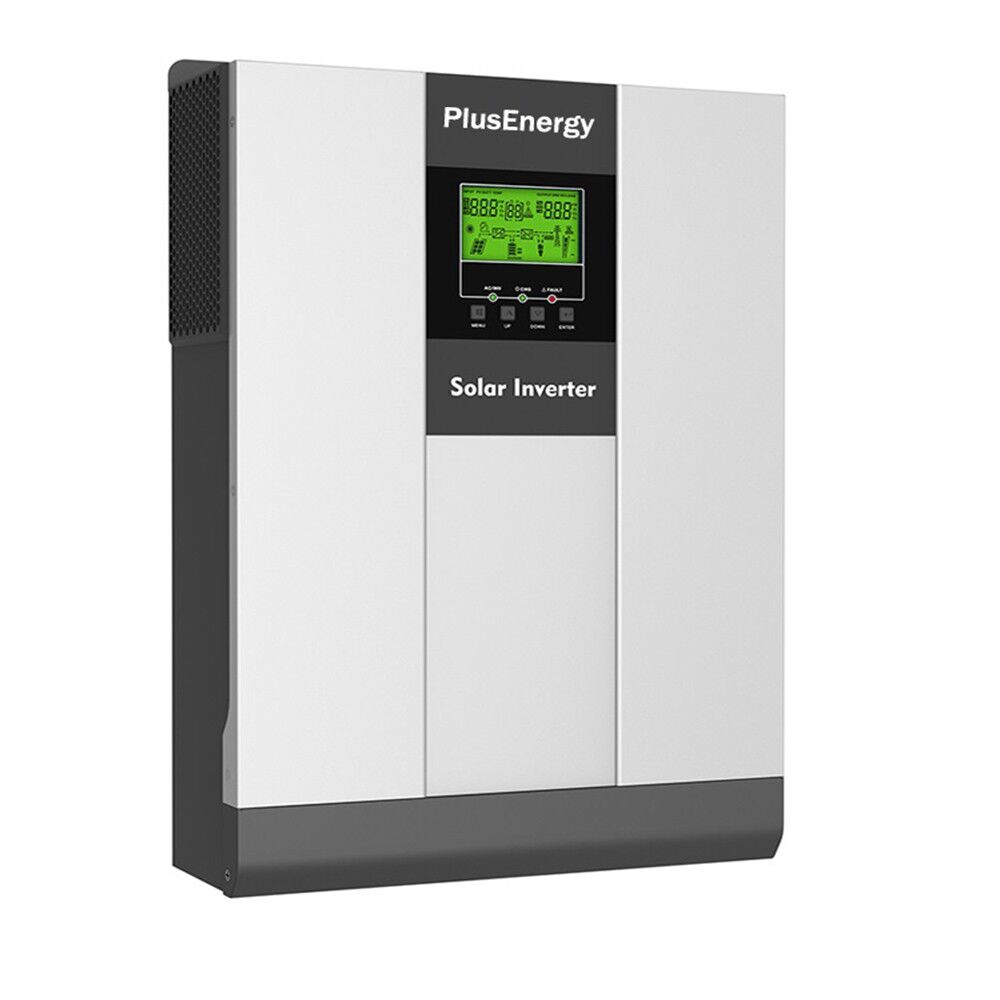

Hybrid inverter 3KW 24v MPPT 80A / 30A Must VHM Plus
Data sheet
- Model: 3KW VHM PLUS
- Nominal power: 3000W.
- Input voltage: 24V.
- Selectable voltage range: 170-280 VAC (for computers) 90-280 VAC (for household appliances).
- Frequency range: 50Hz / 60Hz (automatic detection).
- Output voltage regulation (battery mode): 230 VAC + -5%
- Maximum power (starting peaks): 6000W.
- Efficiency: 93%.
- Transfer time: 10 ms (for computers) 20 ms (for household appliances).
- Wave type: Pure sine wave.- Maximum voltage of the photovoltaic panel open circuit 145VDC
- Battery voltage: 24V.
- Floating charging voltage: 27V.
- Overload protection: 31V.- PV Rated power: 2000W.
- Regulator charging current: 80 A. MPPT
- Charger charging current: 30A.
- Power consumption in stand-by: 2W.- Measurements: 110 x 272 x 355 mm
- 2 years warranty
- Weight: 11 Kgcharacteristics
The WccSolar 3000W 24V VHM PLUS charger inverter includes - among other things - a 24V battery charger with 30A capacity, which is powered by a 230V AC power source. The solar charge controller that incorporates is 80A with MPPT technology, and a nominal photovoltaic power capacity of 2000W, which means that the power of the photovoltaic solar field should not exceed 2000W total. Thanks to the existing possibility of being able to introduce a gasoline generator or the electricity grid, it allows charging the batteries through this source in addition to being feeding the house by-pass, in this way, there will be no time when the installation runs out Energy.
The WccSolar 3000W 24V charger inverter, with 80A MPPT regulator is fully programmable and configurable through its information display, with the possibility of connecting an external generator will ensure that it will never be without electricity.
The speed of interconnection between the network, solar panels or batteries is so fast that nothing is perceived at all; You will always have a fluid power supply without interruptions.
The LCD has a resolution of 255 x 160 pixels with backlight making it easy to read. The energy generation data, alerts and other information are shown to the user clearly and easily.
The inverter Charger 3000W 24V WccSolar is an all-in-one system that does not need any other device.
The inverter Charger 3000W 24V WccSolar always prefers the energy of the sun or batteries and as a last resort it will use the power of the mains or the generator set, so you will be independent of your electricity company.
Inverter Easy to install
There is no other system as easy to install as the Inverter Charger 3000W 24V WccSolar series. This is not only good for the person performing the installation: you will also save time, space and money.
Configuration of the inverter charger 3000W 24V WccSolar MPPT 80A
Remote control and programming software included (WATCHPOWER) and USB cable inverter-computer. WatchPower includes monitoring application and inverter configuration application. It allows the control and monitoring of various devices through the ANAN, Internet or USB. Warning notifications or alarms through audible alarm, pop-up screen, transmission, SMS, tray message and email.
