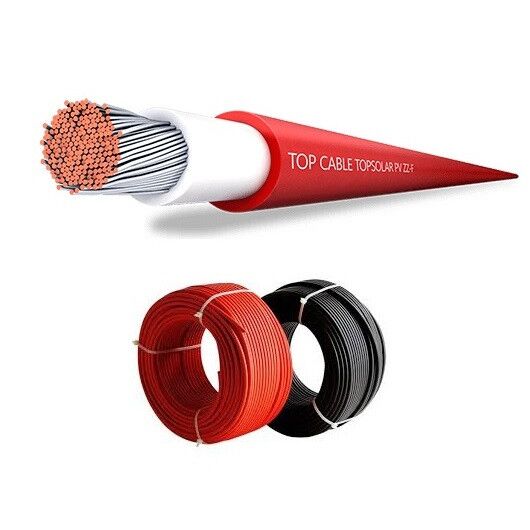

Indicated for connection of plates or photovoltaic panels or between panels to the DC inverter. Flexible cables suitable for Mobile Services and Fixed Installations, both inside and outside. High Security Cables (AS) RESISTANT TO Ozone and ultraviolet rays, non-propagating fire, with low smoke emission and free of halogens.

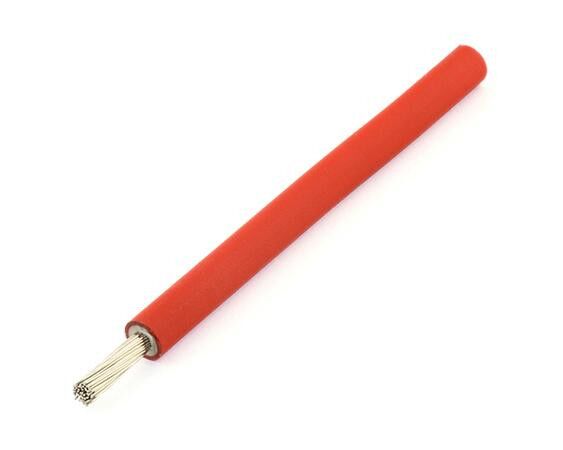

Red cable data sheet:
- Low emission of corrosive gases UNE-EN 60754-2 and IEC 60754-2.
- Low smoke emission according to UNE-EN 61034 and IEC 61034. Luminous transmittance> 60%.
- Halogen free according to UNE-EN 60754-1 and IEC 60754-1
- No propagation of the flame according to UNE-EN 60332-1 and IEC 60332-1.
- Electrical characteristics
- LOW VOLTAGE AC: 0.6 / 1kVDC: 1.8 kV
- Mechanical characteristics
- Bend radius: 3x outside diameter.
- Impact resistance: AG2 Medium.
- Chemical characteristics
- Resistance to fats and oils: excellent.
- Resistance to chemical attacks: excellent.
- Resistance to ultraviolet rays: EN 50618 and TÜV 2Pfg 1169-08.

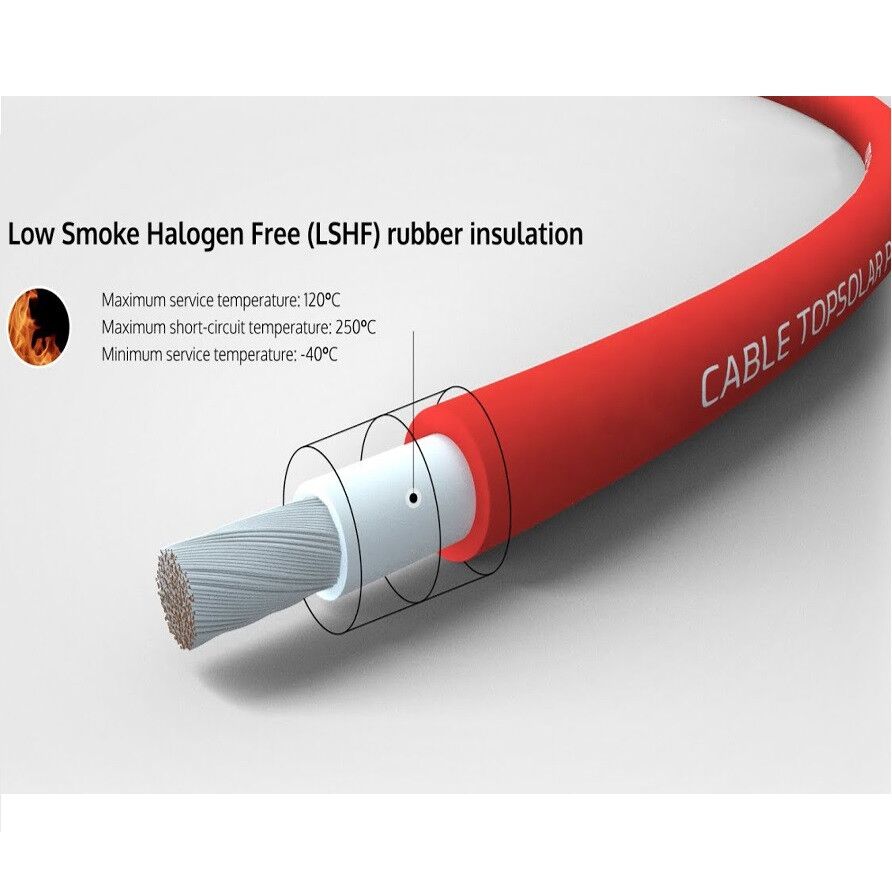

- Thermal characteristics
- Maximum conductor temperature: 120ºC.
- Maximum temperature in
- short circuit: 250ºC (maximum 5 s)
- Minimum service temperature: -40ºC.
- Presence of water
- Presence of water: AD8 submerged.

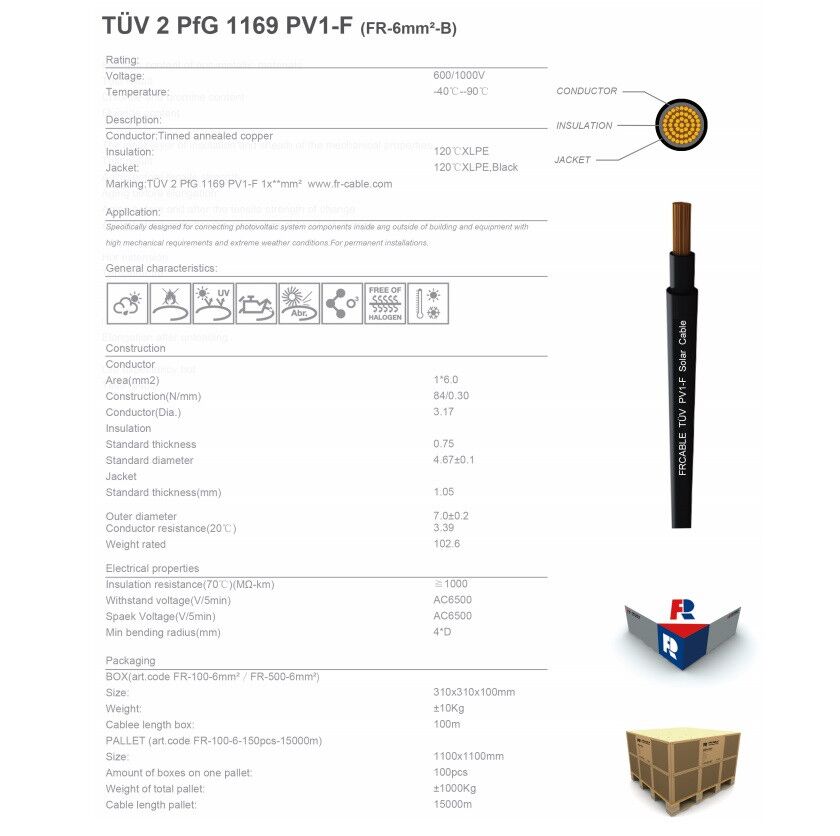

Cable certificate and data sheet
Contact us to receive more information.
