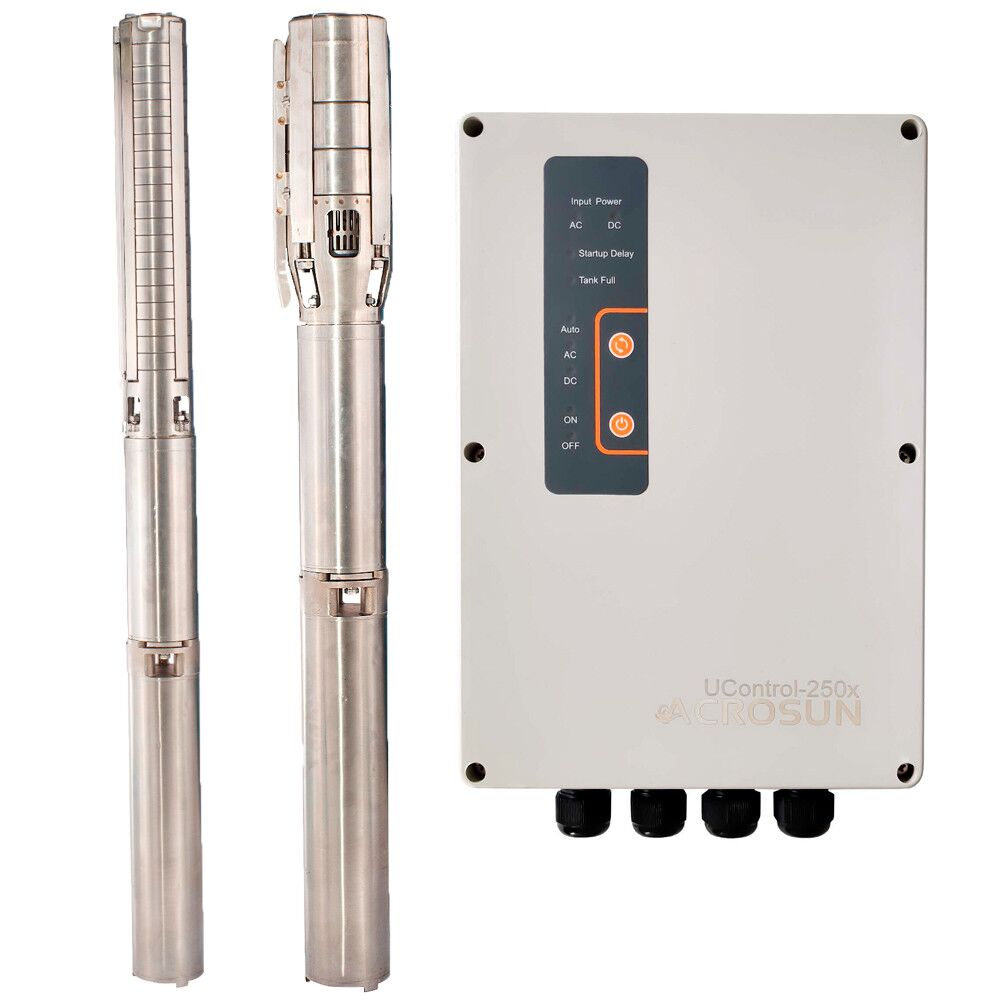

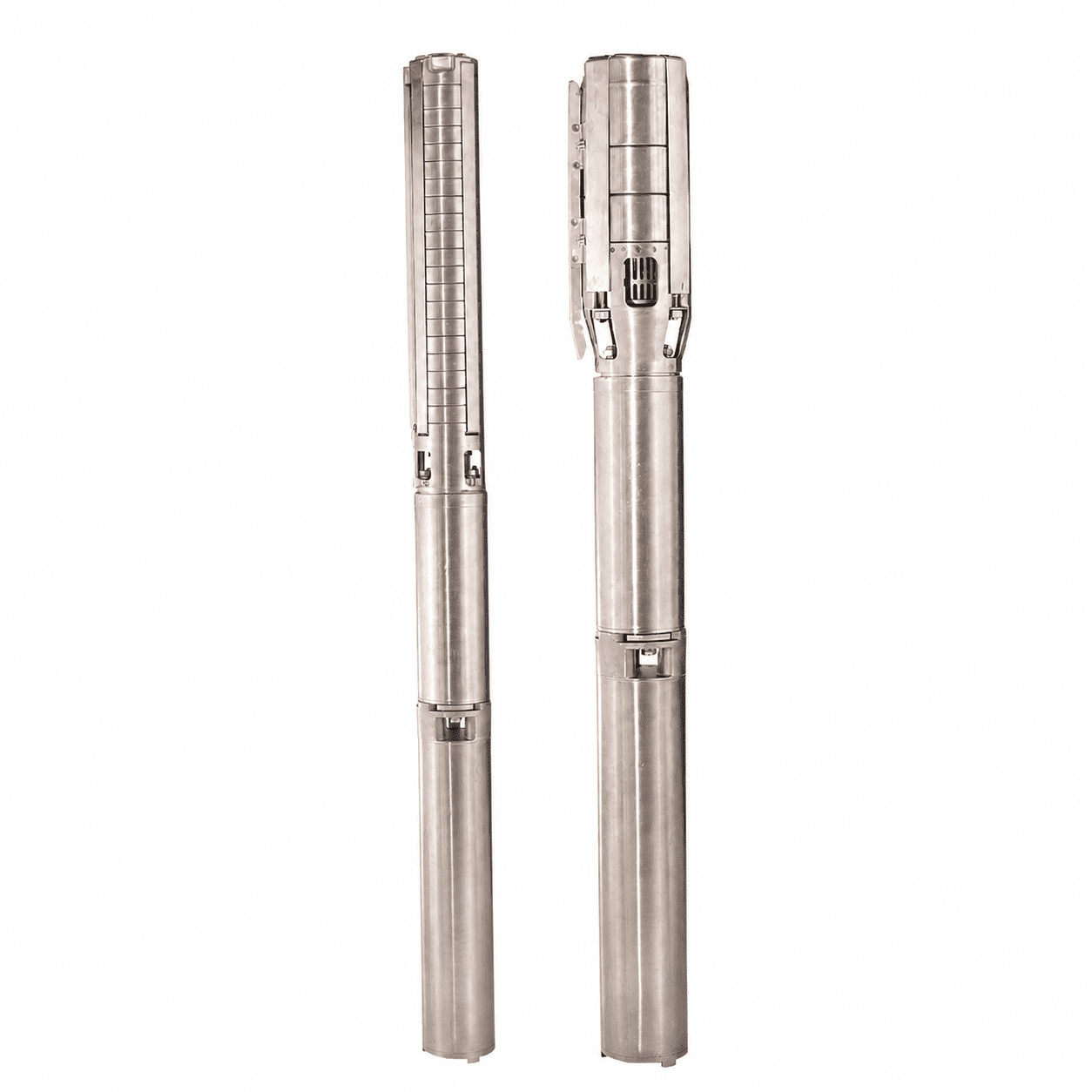

BELENUS Submersible Pump works in three ways:
 -Solar panels DC current
 -AC Current Generator
 -Alternative Current 220VAC

 Adaptable to any situation

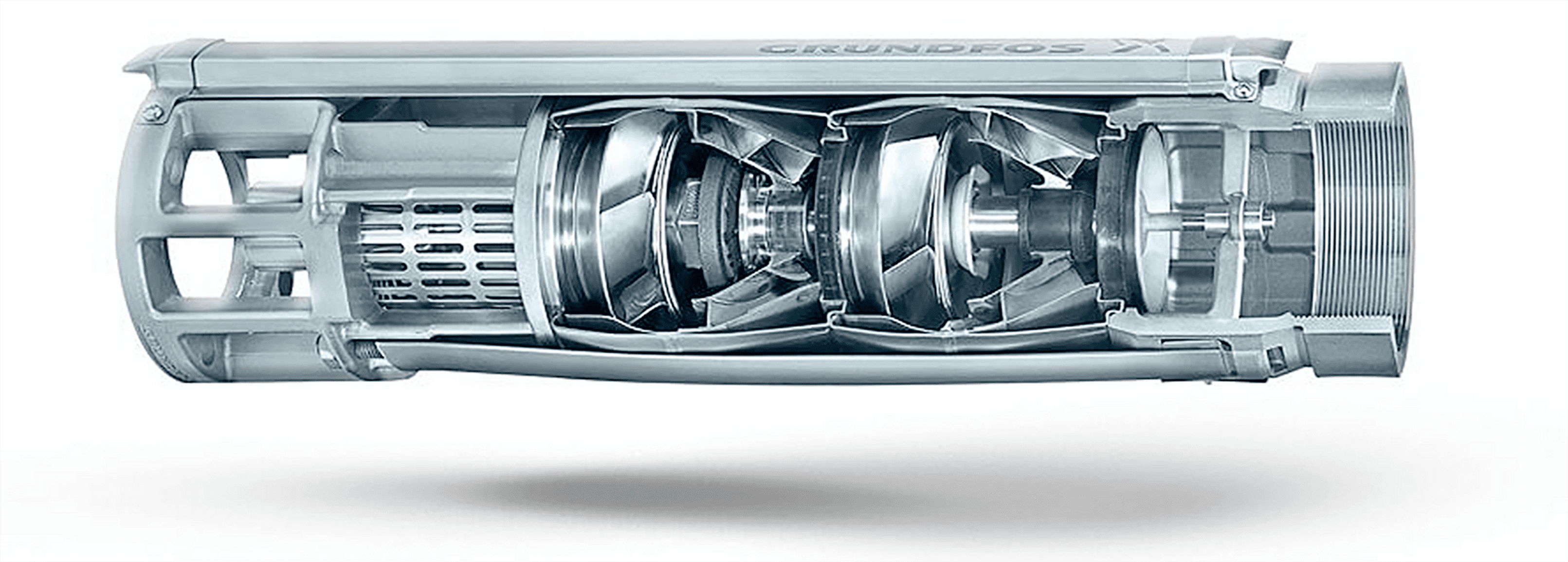

 The interior of the pump is designed in the same way as Grundfos to adapt to the vast majority of pumping conditions, whether it is one with a high flow rate or if, on the other hand, the slope is very high.
 That is why we have products ranging from 5 meters to 180 meters in height and from 220l / h to 43,200l / h
 All this without sacrificing efficiency, making the most of the connected photovoltaic power.

 Automatic tank filling control
 We have simplified the tank fill control system thanks to our automatic controller. With it, the system will automatically control when to start or stop depending on the capacity of the tank.
 In addition, it allows the connection of alternating current for the use of a generator to be able to start and stop fully automatically.

 Dry well protection
 There are two very important variables to control that the pump stops before the well dries up completely: The first is for the protection of the pump itself. The second to preserve the well. That is why at Acrosun we have developed the StopFlow system with which the pump automatically interrupts its operation.
 In this way, we are able to significantly extend the life of both parties.

 Direct Current or Alternating Current With the same wires!
 Only 3 wires to operate this pump, and one of them is the ground connection, and with them, we can supply the pump with both direct current and alternating current. Yes, it seems incredible. In this way, we cover the need to maximize the options when making a solar pump work.

 Stainless steel body
 Our product is made of the most resistant materials. The whole set is made of 304 Stainless Steel.

 Wide voltage range
 Between 60 and 380 volts is the operating range of our equipment, vital to make the most of the photovoltaic field.

 Up to 43,200 liters / hour
 We have equipment capable of giving a flow of up to 43,200 liters / hour. Something incredible considering the power in panels you need for this.

 Encapsulated electronics
 The reason for the simplicity of the system when it comes to operation and installation lies in the pump itself. That is where the brain of it resides. An intelligent electronic system whose work is essential. All protected within the body of the engine.

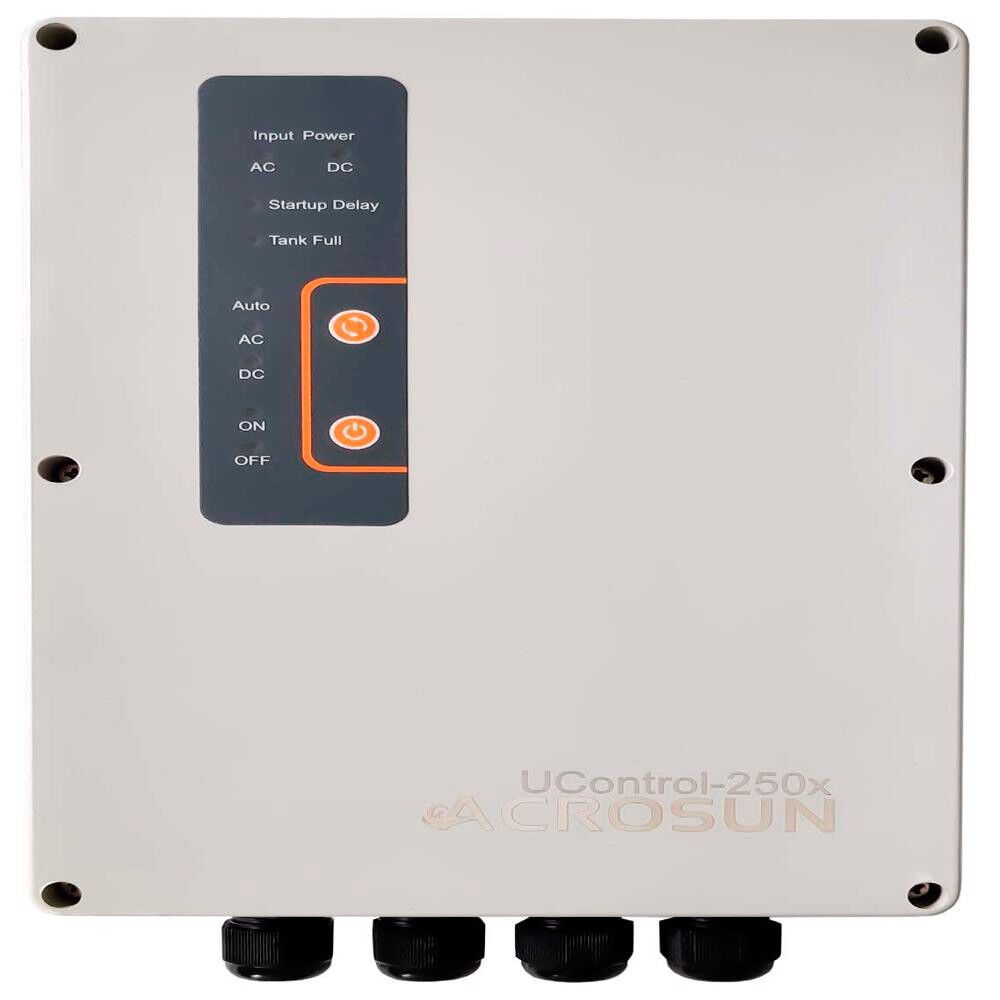

 FUNCTIONALITIES OFFERED BY THE UControl-250x CONTROLLER:
 • Selection of power input source. In AC mode, the power supply
 incoming can be the grid connection or generator.
 • Selection of power input source. In DC mode, the power supply
 incoming can be solar panels or batteries. DC is the default power supply.
 • Button to switch between automatic mode, AC mode, DC mode.
 • Control on and off the pump.
 • Protection against high voltages. The pump motor will shut down when AC range> 265V.
 • Protection against high voltage. The pump motor will shut down when DC> 480V.
 • The pump stops operating when the controller sensor detects that it is
 full. Likewise, when the water level drops, the pump starts again.
 Installation Submersible solar pump Plus Energy

 In Wccsolar, the installation of this Submersible Solar Pump Plus Energy is recommended that it be installed by a photovoltaic professional , or the installation instructions are strictly followed to avoid bad connections and breakdowns due to incorrect installation.

 Buy Submersible solar pump Plus Energy

 Buying the submersible solar pump Plus Energy is fast, safe and comfortable thanks to Wccsolar, in addition the submersible solar pump Plus Energy has an official guarantee from Wccsolar.

 Contact us to receive more information.

 Pump Technical Sheet
 Controller Technical Sheet
