The Solar Water Pump 4SSC 6.6 / 1300/158 is designed for 90V operation using 9 panels of 250W 260W 270W 280W of 60 cells. (Three series of three parallels)

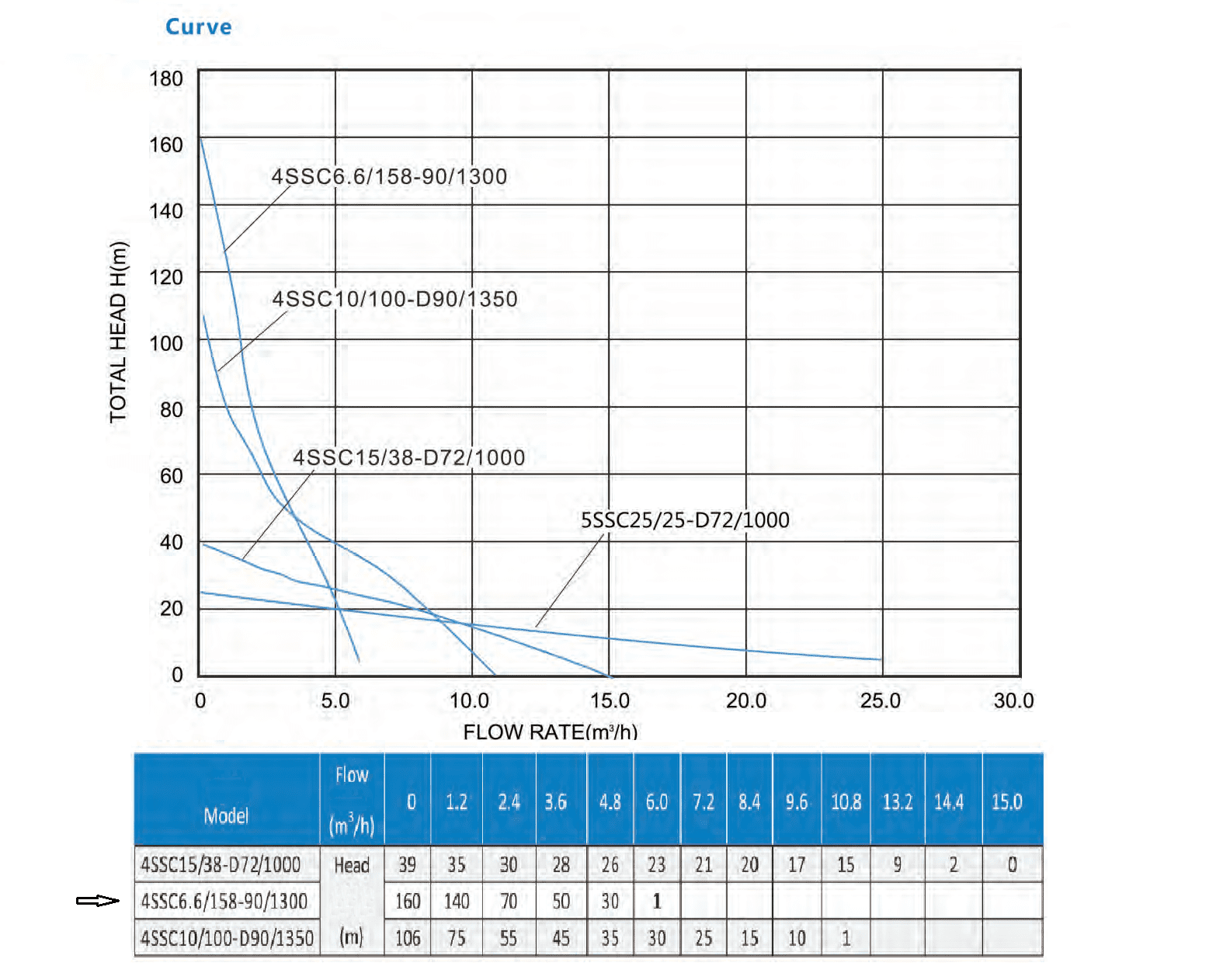

It offers a flow that varies between 66000 liters / hour according to the height at which the water is to be pumped. Allowing a maximum height of 158 meters.
This pump allows the direct use of the submersible pump by means of solar panels and without the need for grid power or battery accumulation.
The submersible solar pump starts automatically during the hours when there is more solar radiation. In this way the water is pumped during the summer or every day of the year.
Submersible solar pump Plus Energy + regulator (built-in)
Direct operation of the submersible solar pump using solar panels .
Installation Submersible solar pump Plus Energy
In Wccsolar the installation of this Submersible Solar Pump Plus Energy is recommended to be installed by a photovoltaic professional , or the installation instructions are strictly followed to avoid bad connections and breakdowns due to improper installation.
Buy Submersible solar pump Plus Energy
Buying the Plus Energy Submersible Solar Pump is fast, safe and comfortable thanks to Wccsolar, in addition the Plus Energy Submersible Solar Pump has an official Wccsolar warranty.
Contact us to receive more information.
Informational Video of Operation HERE
4SSC 6.6 / 1300/90 Submersible Solar Water Pump

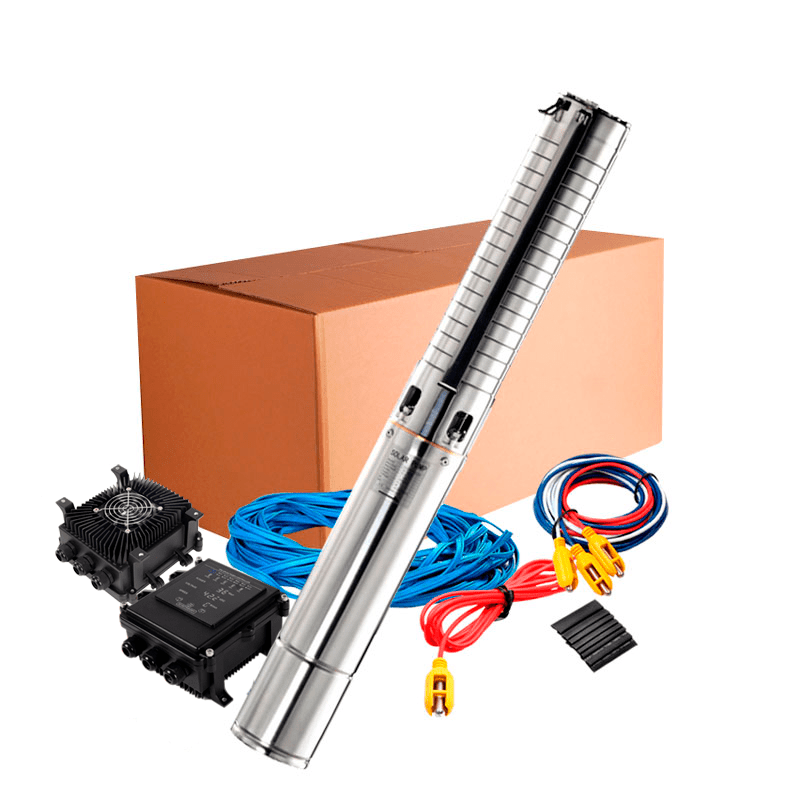

This product included
- submersible pump
- Pumping Control Panel

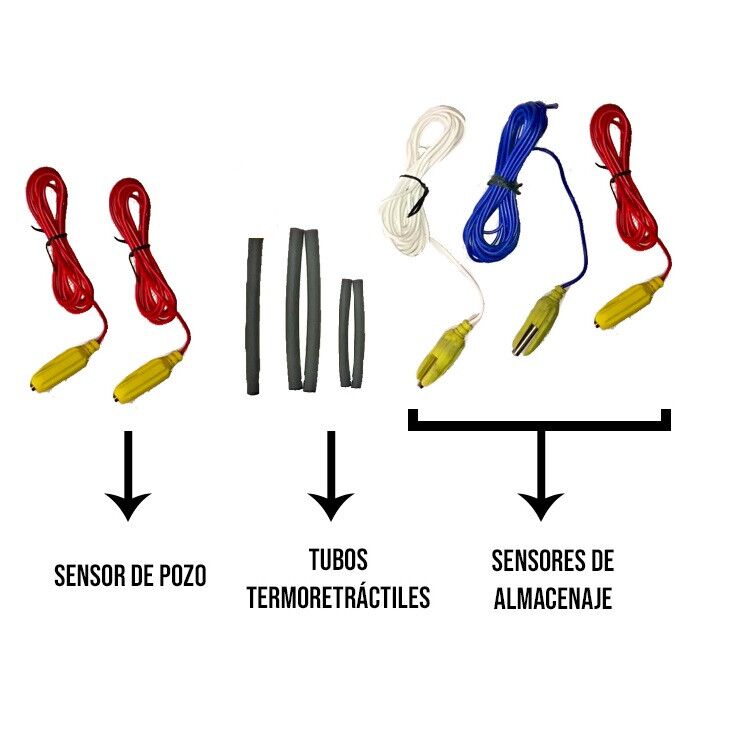

- Well probes (color of probes may vary)
- Deposit probes (color of probes may vary)
features
- Height: max. 158 meters.
- Flow: max. 6.6 m3 / h (6600 liters / hour).
- Input voltage: 90V
- Efficiency: 98%.
- Protection mode: IP54
- Minimum diameter of the well: 14 cm.
- Pump diameter: 95mm
- Nominal motor power: 1300W.
- Protection mode. IP68.
- Pump outlet intake: 1.5 inch section
- Weight: 19KG

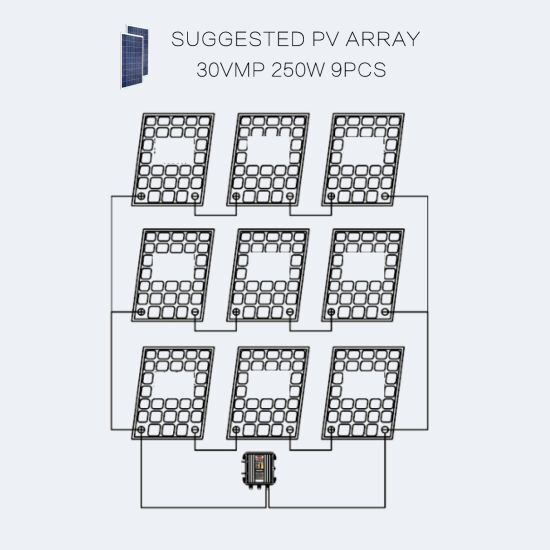

- Way of connecting 3 Parallels of 3 series Total 9 panels (250W 260W 270W 280W.)
- 2 year warranty
- Total pump height 89cm
- Pump Diameter 10cm
