The 12 volt polycrystalline 150W solar panel is one of the most powerful in the 12-vote range, thanks to 5 buses each cell to produce maximum solar efficiency. Very used for installations in 12 volt kits , in field houses, chalets and homes of habitual use incorporating with it, batteries and charge regulators. It is formed by polycrystalline silicon, more efficient than monocrystalline in warm weather and at a lower price, which is why this panel offers optimal performance guarantees at a very good price. It is a 12V solar panel and therefore 36 cells. Its technology makes it even more efficient by capturing greater production of them in all possible solar conditions.
Buy Solar Panel 150W polycrystalline 12V 36 Cells
In Wccsolar you can purchase the 12 Volt Polycrystalline Solar Panel 150W as the only component, although for those cases that what is desired is to perform an installation to have energy autonomy and opt for self-consumption, we recommend the isolated connection solar kits that are an excellent option when the electrical network does not arrive where it is desired, so this type of kits provide absolute autonomy and independence of the electricity companies, providing during the daytime hours energy that will be consumed and stored so that it can also be consumed at night hours or when solar energy is not available due to weather conditions.
On the other hand, if what you want is to reduce the electricity bill of your electric company by resorting to the services of the electric company during the night hours or when due to weather conditions there is no photovoltaic energy available, we recommend the solar connection kits to network .
Both solar kits can be completely customizable according to your needs, and you can see how many of them include the 12 volt Polycrystalline Solar Panel 150w a more attractive price than acquiring it separately.
Contact us to receive more information.

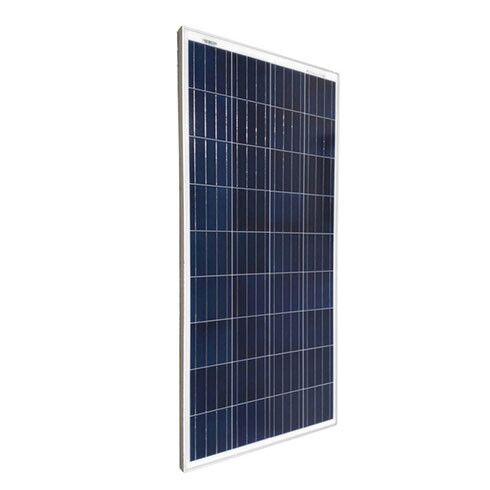

Solar Panel 150W Polycrystalline 12v
Data sheet
Nominal power Pmax: 150 WP
Nominal voltage U MPP: 18.34 V
Nominal current IMPP: 8.18 A
Open circuit voltage U0: 22.81 V
ISC short circuit current: 8.81 A
Dimensions: L x W 1478 x 674 x 35 mm
Frame case Height / with: 35mm / 35mm
Weight: 12 Kg
Module connectivity: 950mm with MC4 connector
Frame Color: Silver Anodized
performance
- High module conversion efficiency up to 17.52% through the use of high efficiency solar cells
- and advanced manufacturing technology.
- Low degradation and excellent performance under high temperatures and low light
- terms
- The robust aluminum frame ensures that the modules withstand wind loads of up to 2400 Pa
- and snow loads up to 5400 Pa.
- High reliability against extreme environmental conditions (passing salt fog,
- Ammonia and hail tests).
- Possible resistance to induced degradation (PID).
- Positive power tolerance of 0 ~ + 3%.
Certifications
- IEC61215, IEC61730, IEC62716, IEC61701, CE, CQC, CGC, ETL (USA),
- JET (Japan), J-PEC (Japan), Kemco (South Korea), KS (South Korea), MCS (United Kingdom),
- CEC (Australia), FSEC (FL-USA), eligible CSI (CA-USA), Israel Electric (Israel),
- InMetro (Brazil), TSE (Turkey)
- ISO9001: 2008: quality management system
- ISO14001: 2004: environmental management system
- OHSAS18001: 2007: Occupational Health and Safety Management System
